The 591C Densimeter with the canine calibration is designed to quickly and accurately estimate sperm concentration and automatically perform all calculations required to create appropriate insemination doses. A built-in "Expert System" provides simple step-by-step instructions for evaluating semen and producing insemination doses. These instructions follow semen processing protocols developed by the Colorado State University Animal Reproduction and Biotechnology Laboratory.
Both semen processing protocols use the measured sperm concentration and two user entered values (gel-free semen volume and progressive motility) as input for insemination dose calculations. The built-in Expert System recommends the number of progressively motile sperm cells, calculates the total number of available doses, volume of gel-free semen and recommended volume of extender for each insemination dose. All parameters used in these calculations can be easily modified to provide maximum flexibility for the skilled equine practitioner.
The 591C Canine Sperm Counter Kit includes a universal power supply (120V / 240V operation), instruction manual, Canine Test Kit, Pipette, and Calibration Loader CD. Disposable supplies are included for the first 20 tests.
| Specification | Value |
|---|
| ARS Part Number | DENK-1227 |
| Height | 4.5 " |
| Width | 9.0 " |
| Length | 80 " |
| Weight | 2.6 lbs (Densimeter only) |
| External Power Supply | 100 - 240 VAC, 47 - 63 Hz input, 12V DC 1.0A output. |
The 591B Densimeter is a multipurpose instrument capable of quick, accurate estimations of canine sperm concentration. Each Densimeter kit is pre-loaded with the calibrations necessary for the specified operation.
The 591B Densimeter can hold up to eight calibrations at a time and additional calibrations may be purchased and loaded as needed. Alternate species and other unique calibrations are available for Stallions, Bulls, Boars, Roosters, and Turkeys.
The 591B Densimeter is housed in a sturdy, lightweight plastic casing, measuring 9"x8"x4" with an approximate weight of 2 lbs. The front panel consists of a 20-button keypad and an illuminated liquid crystal display (LCD) panel. Located on the back is the power switch, power receptacle and a USB communications port.
A 12 volt car adapter, additional species calibrations, semen processes or alternate tests may be purchased separately from Animal Reproduction Systems.

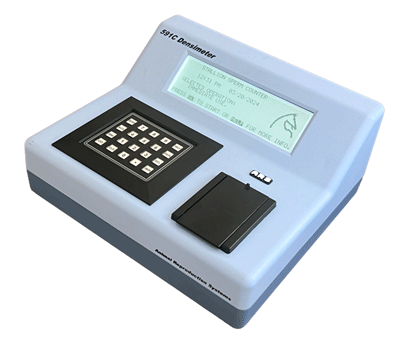

The 591C Densimeter features a temperature stabilized optical system which increases accuracy of the device. An audible alarm is built-in to announce when a test is complete and test results can be stored internally for later download. In addition, automatic calibration adjustments are performed before each test, eliminating the need for any additional calibration procedures.
Included on the Calibration Loader CD is the Densimeter Data Utility. This utility program downloads test data from the 591 Densimeter and stores the results into Excel spreadsheets or advanced database applications.
| Quantity | Description | Part Number |
| 1 | 591 Canine Densimeter | 591B-MOD2 |
| 1 | 94.7 ul Fixed Volume Positive Displacement Pipette | 594KR-0947 |
| 1 | Canine Test Supply Kit (20 tests) | CSK-101-KIT |
| 1 | 591B Instruction Manual | 591B-135 |
| 1 | Power Supply with Cord | 537-684 |
| 1 | USB 2.0 Serial Cable | 537-796 |
| 1 | Calibration CD | 591-137 |
| 1 | Kimwipes | 537-669 |
